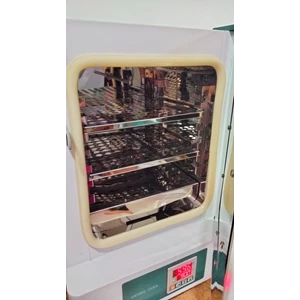

Desktop Constant-temperature Drying Oven
Light natural convection drying oven / incubator
Product Description:
1. In the work room, the hot air is convective naturally and cyclically.
2. Digital display microcomputer intelligent PID temperature controller.
3. New anti-hot handle.
Major Technique Parameter:
model WHL-25A/WHL-25AB
Cycle Mode Natural convection
Main parameters
Model: WHL-25AB
Cycle mode: Natural convection
Temperature range: RT+10-300℃
Temperature resolution ratio: 0.1℃
Temperature motion: ±1℃
Temperature uniformity: ±3.5% Inner
chamber: stainless steel mirror
Outer shell: electrostatic spraying exterior cold rolling steel
Insulation layer: High quality rock wool board (with CE)
Heater: nickel-chromium alloy heating wire
Power rating:
0.6kw Exhaust Hole: highest φ28mm (with test hole function)
Temperature control mode: two sections intelligent PID temperature
Setting mode temperature: touch button setting
Temperature display mode: measurement temperature: display on the top four rows of digital tube;
Temperature settings: display on the bottom row
Timer: 0-9999 minutes (with time-out function)
Operation function: constant temperature operation, timing function, auto stop
Auxiliary functions: Sensor deviation correction, temperature overshoot self-adjustment, internal
Parameter lock-out, parameter memory power off
Sensor: PT100
Security device : over temperature sound-light alarm
Inner chamber size(W * w * h)(mm): 260*260*260
Exterior size (W * w * h)(mm): 380*455*568
Packing size (W * w * h)(mm): 500*530*657
Volume: 18L
NW/GW (kg): 27/35
Shelf: 2
Load per rack: 15kg
Optional accessories: rack, programmable controller
